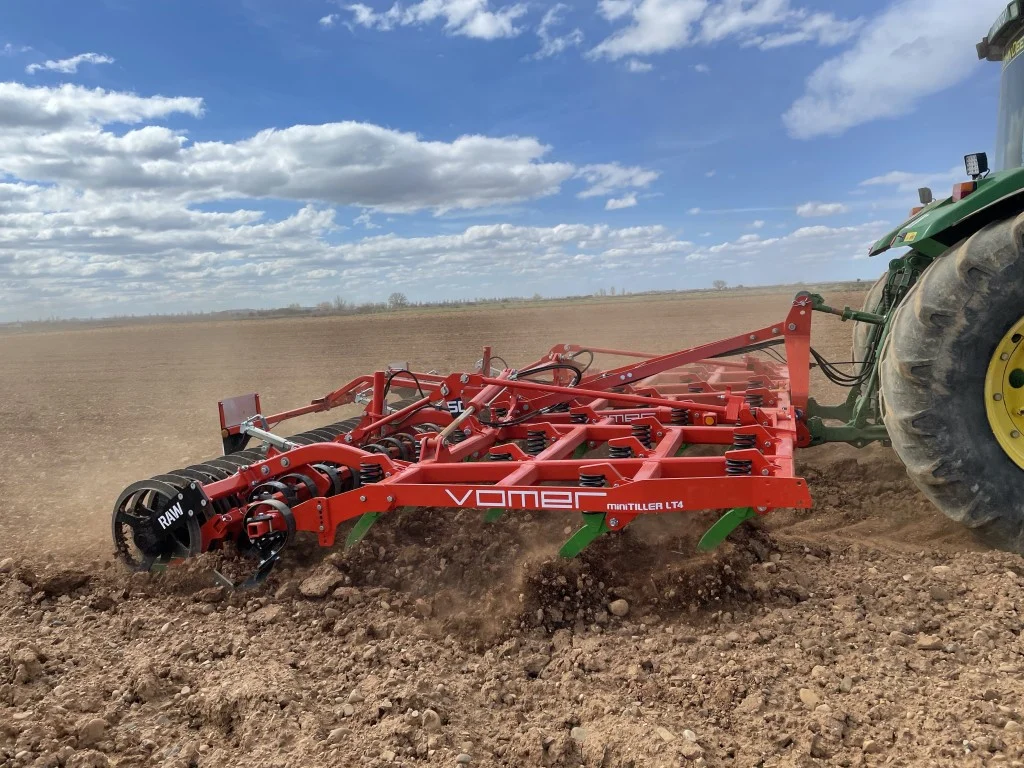

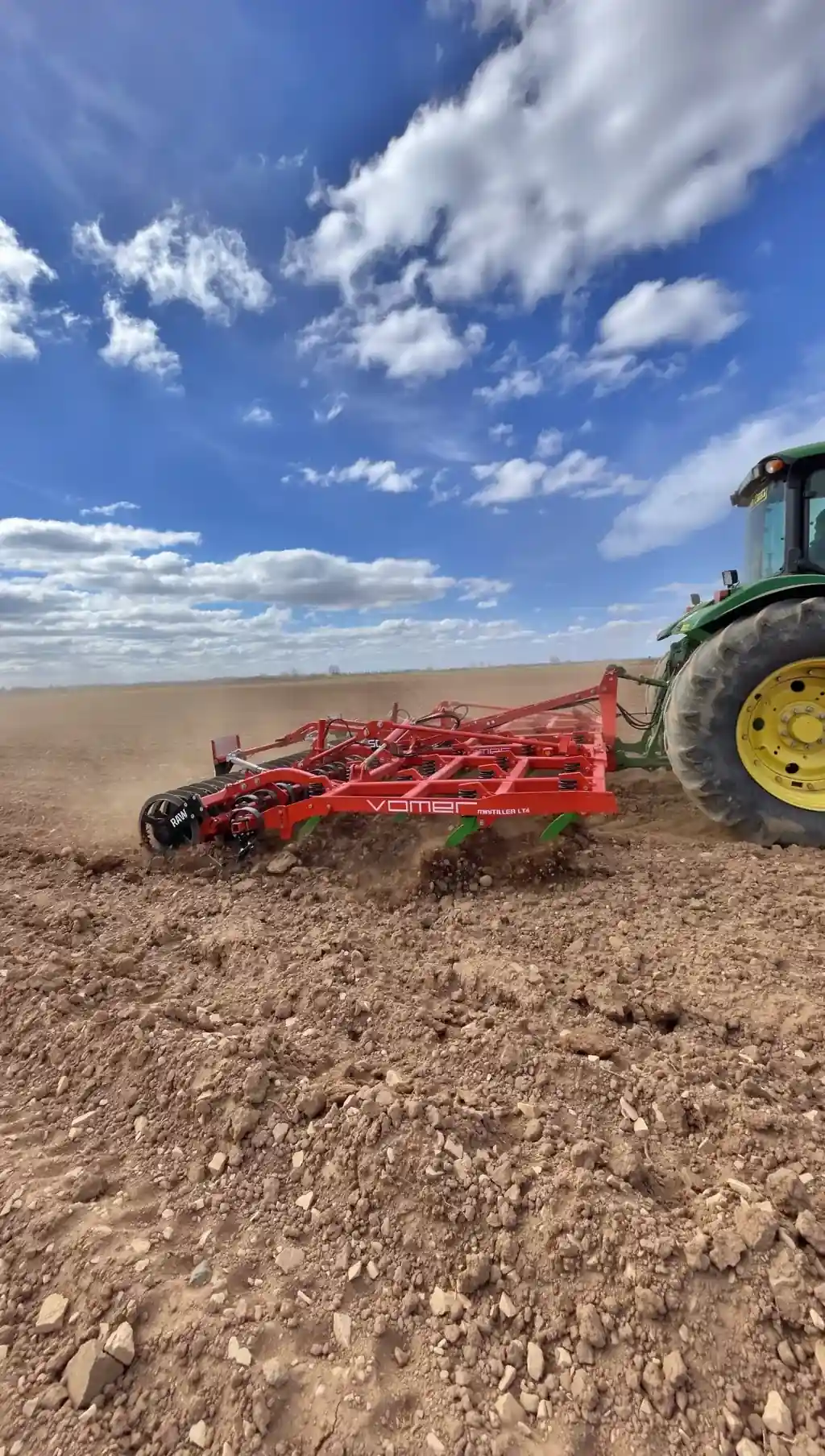

MiniTILLER LT4 — 4-row mounted chisel plow
Secondary tillage and seedbed prep in a single pass. Four closely spaced rows leave the soil level and finely worked, even with worn points.
Manufacturer data — ES/26
up to 20 cm
Working depth
3,0–6,0 m
Working width
100–280 hp
Tractor power
up to 20 cm
Working depth
3,0–6,0 m
Working width
100–280 hp
Tractor power
arador.pro
REF: AGR-2026/MIN-001
FECHA: 07/07/2026
ORIGEN: Arador & Vomer · ES
CLASE: MAQUINARIA
NIVEL: TÉCNICO
COPIA: 1 / 1
// About the equipment
MiniTILLERLT4
DESC.
The MiniTILLER LT4 is the 4-row mounted cultivator for secondary tillage and seedbed preparation down to 20 cm. Compact LT shanks at 16 cm spacing, 67 cm ground clearance. Symmetrical layout that neutralises lateral forces.
TRANS.
Works with tractors from 100 to 280 HP, covering widths from 3 to 6 m. Non-Stop system with vertical spring, zero grease points and 10-year warranty against shank breakage.
DOC-AGR · TECHNOLOGY ARADOR & VOMER · 2026 17 PARAM.
// Technical specifications
DATA SHEET # Parameter Value
01
| Machine type
Mounted cultivator 4 rows — LT shanks
02
| Hitch
Three-point Cat. 3N · Cat. 3N + 3N · Cat. 3 + 3N
03
| Working width
3,0–6,0 m
04
| Working depth
3–20 cm
05
| Ground clearance
67 cm
06
| Shank rows
4 rows
07
| Number of shanks
17–37 depending on model
08
| Transport width
3,05 / 3,00 m
09
| Weight
1 150–2 700 kg
10
| Non-Stop system
Non-Stop LT — vertical spring
11
| Required power
100–280 hp
12
| Shank spacing
16 cm
13
| Frame section
80×80 mm — high-strength steel
14
| Compatible shares
Goosefoot (27 cm) · Chisel point (7,5 cm)
15
| Compatible rollers
J600 · TW500 · RAW 600
16
| Maintenance
Zero — greaseless
17
| Shank warranty
10 years against breakage
Approved data · subject to configuration
17 REG.
OK
// Dimensions
Available models
[ CERTIFIED DATA ]
01 FC.304
models - Width
- 3,0 m
- Shanks
- 17
- Transport
- 3,05 m
- Weight
- 1 150 kg
- Hydr. folding
- No
- Hitch
- Cat. 3N
- Power
- 100–150 hp
02 FC.404
models - Width
- 4,0 m
- Shanks
- 25
- Transport
- 3,00 m
- Weight
- 1 950 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3N
- Power
- 150–180 hp
03 FC.504
models - Width
- 5,0 m
- Shanks
- 31
- Transport
- 3,00 m
- Weight
- 2 350 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3N + 3N
- Power
- 170–240 hp
04 FC.604
models - Width
- 6,0 m
- Shanks
- 37
- Transport
- 3,00 m
- Weight
- 2 700 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3 + 3N
- Power
- 230–280 hp
4 models · MiniTILLER LT4 (4 rows)
// Application Fields · Tactical Map
Application
application.
Active zones: 08 / 08
Status: operational
Ref: AGR-MAP-V1
R1
R2
Col A
Col B
Col C
Col D
A1
01
Stale seedbed
B1
02
Post-ploughing levelling
C1
03
Cover crop incorporation
D1
04
Crust breaking
A2
05
Secondary tillage
B2
06
Weed control
C2
07
Barley
D2
08
Wheat
Col A
Col B
A1
01
Stale seedbed
B1
02
Post-ploughing levelling
A2
03
Cover crop incorporation
B2
04
Crust breaking
A3
05
Secondary tillage
B3
06
Weed control
A4
07
Barley
B4
08
Wheat
Photo record
documentation.
Photo record
01 06
Product
MiniTILLER LT4
Format
Photo · Field
Ref.
VOM·2026·FIG.01
Total records
06 registros
// Photo documentation VOM·2026
Active record
FIG.01 — MiniTILLER LT4
▶ VID.01
VID.01
FIG.01
FIG.02
FIG.03
FIG.04
FIG.05
// Engineering & Design
Construction
overview.
09
Parameters
Operating system
01 Frame built from high-strength steel
02 Main frame section: 80×80 mm
03 Upper section designed with articulated bars without welds (improves flexibility and reduces breakage)
04 No grease fittings (Zero Maintenance)
05 Vertical spring Non-Stop system: maintains working depth
06 Depth control via clips/gauges: fast and precise adjustment
07 High-strength maintenance-free shanks
08 No grease fittings (Zero Maintenance)
09 Optional LED lights
// COMPETITIVE ADVANTAGES
Why choose this machine.
01
The 4-row layout with 160 mm spacing avoids repeated passes in preparation work: in many cases a single pass is sufficient
02
With Goosefoot shares, ensures the soil is fully worked even when shares are worn
03
4 rows do not mean a longer cultivator: compact frame
04
Homogeneous and balanced shank distribution across 4 rows: zero lateral forces
05
With shanks at 160 mm and 4 rows, a 64 cm clearance per row is guaranteed — greater than any 2-row cultivator or semi-chisel and comparable to 3-row cultivators → no problems with stubble or surface residues
06
The spring system maintains working depth and avoids unnecessary passes
07
Requires lower power levels for the same work compared to other market models (declared in catalogue)
ORIGINAL SPARE PARTS
Implements and accessories
compatible.
2 groups
12 implements
100% genuine
- 01
Chisel pointNarrow chisel point 7.5 cm for precision tillage and direct seeding.
- 02
Goosefoot pointWide goosefoot share 27 cm for full coverage and false seedbed even with worn shanks.
01
Chisel point
02
Goosefoot point
// TECHNICAL LEGEND · SYSTEMS & MODULES
SYSTEM
Non-Stop
ID·001 · ACTIVE
Non-Stop system 4th gen.
Vomer shanks yield to stones or roots up to 200 kN and automatically return to working depth. Without stopping the tractor.
SYSTEM
Zero
ID·002 · ACTIVE
Zero grease points
Lifetime-sealed joints. Zero lubrication points across the entire machine.
SYSTEM
Vomer 4G shank
ID·003 · ACTIVE
LT shanks
Lightweight shanks for secondary tillage up to 20 cm. 4-row configuration, 16 cm shank spacing.
SYSTEM
LT
ID·004 · ACTIVE
4th-generation Vomer shank
Aggressive curvature and exclusive geometry. Lower resistance and maximum penetration. 10-year warranty against breakage.
10
Years of Warranty
REF: #VOMER-2024
SERIE: AGR-10Y-BRZ
SERIE: AGR-10Y-BRZ
Arador & Vomer
Manufacturer
Arador & Vomer · Official certificate
Warranty
Certificate
Art. I 10-year warranty against shank breakage (applicable exclusively to Vomer shanks bearing the '10-year Shank Breakage Warranty' sticker)
Art. II The warranty does not cover wear from use or breakage resulting from use other than that recommended in the manual
Art. III The warranty does not cover other components, transport or any service other than shank replacement
Art. IV Declared maintenance level: very low
Art. V Maintenance-free shanks
