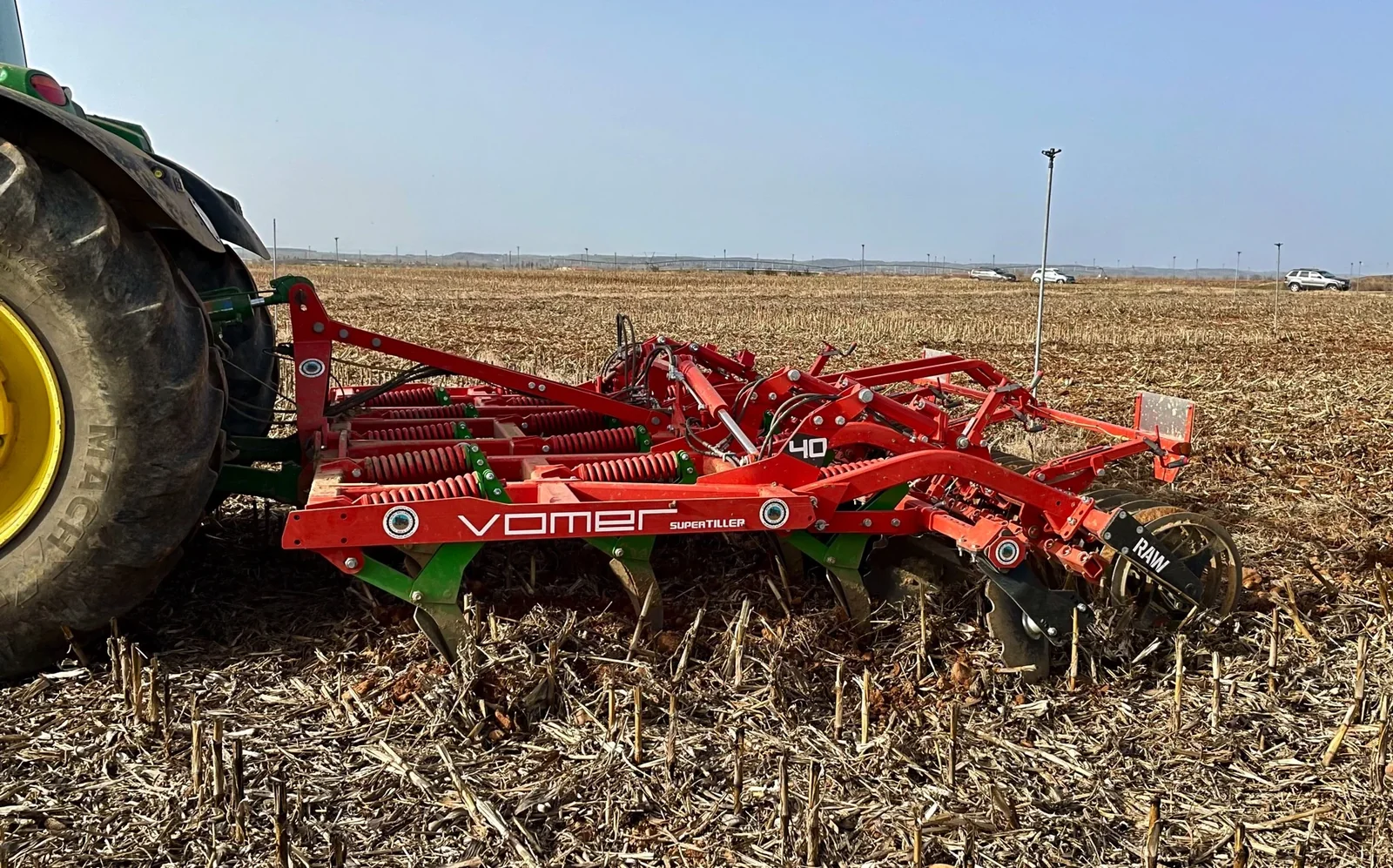

SuperTILLER — Chisel plow
Primary deep tillage that fractures the soil vertically and mixes crop residue in one pass. Shanks trip over rocks and return to depth on their own.
Manufacturer data — ES/26
up to 40 cm
Working depth
3,0–6,0 m
Working width
130–350 hp
Tractor power
up to 40 cm
Working depth
3,0–6,0 m
Working width
130–350 hp
Tractor power
arador.pro
REF: AGR-2026/SUP-001
FECHA: 07/07/2026
ORIGEN: Arador & Vomer · ES
CLASE: MAQUINARIA
NIVEL: TÉCNICO
COPIA: 1 / 1
// About the equipment
SuperTILLER
DESC.
The SuperTILLER is the reference shank cultivator for operations demanding deep tillage, good residue incorporation and high work capacity. Designed to work up to 40 cm depth with exceptional penetration, it maintains low fuel consumption and outstanding field stability.
TRANS.
Particularly effective in primary tillage, the SuperTILLER breaks the soil vertically to 40 cm, decompacting hardened horizons and preparing an optimal seedbed for the next crop. With a ground clearance of 83 cm and optimised shank distribution, it works without blockages even with large quantities of maize or cereal stubble.
COMPAT.
The exclusive Vomer 4th-generation shank delivers lower resistance thanks to its curvature and greater penetration power. The non-linear Non-Stop system maintains constant depth without any maintenance, virtually eliminating field stoppages during the working day.
DOC-AGR · TECHNOLOGY ARADOR & VOMER · 2026 19 PARAM.
// Technical specifications
DATA SHEET # Parameter Value
01
| Machine type
Mounted shank cultivator, 2 or 3 rows
02
| Hitch type
Three-point Cat. 3 · Cat. 3 + 3N
03
| Working width
3,0–6,0 m
04
| Working depth
5–40 cm
05
| Ground clearance
83 cm
06
| Shank rows
2 or 3 rows
07
| Number of shanks
9–21 shanks depending on model
08
| Transport width
3,05 / 3,00 m
09
| Weight
1 100–2 830 kg
10
| Shank spacing
29–32 cm (2 rows) / 28–32 cm (3 rows)
11
| Frame section
100×100 mm — high-strength steel
12
| Depth adjustment
Clips/gauges — fast and precise
13
| Non-Stop system
Non-linear, 4th generation — maintenance-free
14
| Required power
130–350 hp
15
| Compatible shares
Chisel point · Goosefoot
16
| Compatible rollers
J400 · J500 · TW500 · RAW 600 · ROK 600
17
| Compatible levellers
Spike harrow · Spring tine harrow · Paddle harrow · Discs
18
| Maintenance
Zero — greaseless
19
| Shank warranty
10 years against breakage
Approved data · subject to configuration
19 REG.
OK
// Dimensions
Available models
[ CERTIFIED DATA ]
— Select variant 2 options available
Click to compare configurations
01 FM.302
models - Working width
- 3,0 m
- Transport width
- 3,05 m
- Shanks
- 9
- Rec. power
- 130–150 hp
- Approx. weight
- 1 100 kg
- Hydr. folding
- No
- Hitch
- Cat. 3
02 FM.402
models - Working width
- 4,0 m
- Transport width
- 3,00 m
- Shanks
- 13
- Rec. power
- 170–220 hp
- Approx. weight
- 1 790 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3
03 FM.462
models - Working width
- 4,6 m
- Transport width
- 3,00 m
- Shanks
- 15
- Rec. power
- 180–250 hp
- Approx. weight
- 1 980 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3
04 FM.502
models - Working width
- 5,0 m
- Transport width
- 3,00 m
- Shanks
- 17
- Rec. power
- 220–270 hp
- Approx. weight
- 2 170 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3 + 3N
05 FM.562
models - Working width
- 5,6 m
- Transport width
- 3,00 m
- Shanks
- 19
- Rec. power
- 250–350 hp
- Approx. weight
- 2 365 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3 + 3N
06 FM.602
models - Working width
- 6,0 m
- Transport width
- 3,00 m
- Shanks
- 21
- Rec. power
- 280–350 hp
- Approx. weight
- 2 550 kg
- Hydr. folding
- Yes
- Hitch
- Cat. 3 + 3N
6 models · SuperTILLER 2 — 2 shank rows
// Application Fields · Tactical Map
Application
application.
Active zones: 10 / 10
Status: operational
Ref: AGR-MAP-V1
R1
R2
R3
Col A
Col B
Col C
Col D
A1
01
Wheat
B1
02
Barley
C1
03
Rapeseed
D1
04
Sunflower
A2
05
Maize
B2
06
Soybean
C2
07
Sugar beet
D2
08
Compacted soils
A3
09
Stubble
B3
10
Autumn tillage
Col A
Col B
A1
01
Wheat
B1
02
Barley
A2
03
Rapeseed
B2
04
Sunflower
A3
05
Maize
B3
06
Soybean
A4
07
Sugar beet
B4
08
Compacted soils
A5
09
Stubble
B5
10
Autumn tillage
Photo record
documentation.
Photo record
01 09
Product
SuperTILLER
Format
Photo · Field
Ref.
VOM·2026·FIG.01
Total records
09 registros
// Photo documentation VOM·2026
Active record

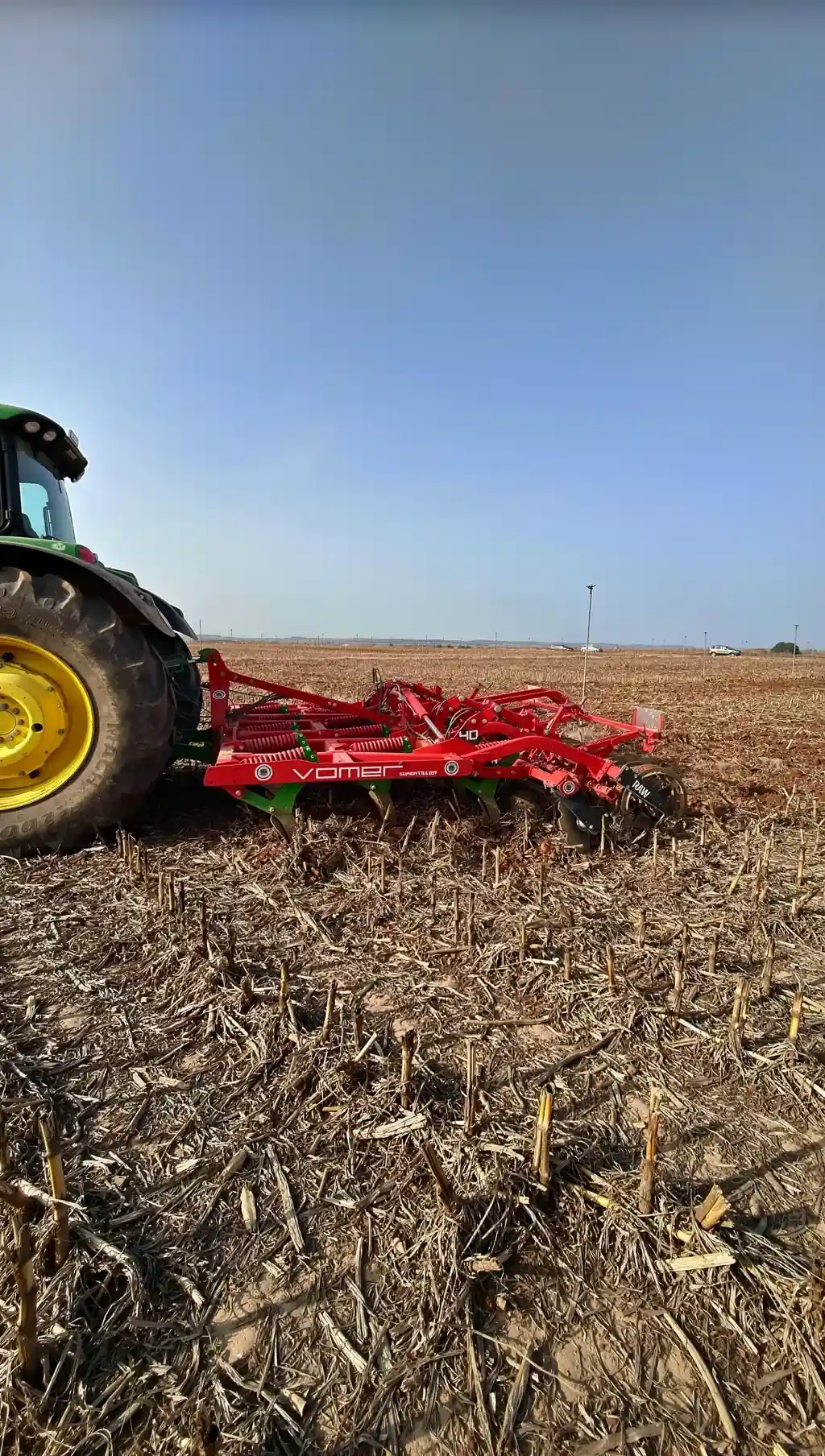

FIG.01 — SuperTILLER
▶ VID.01
VID.01
▶ VID.02
VID.02
FIG.01
FIG.02
FIG.03
FIG.04
FIG.05
FIG.06
FIG.07
// Engineering & Design
Construction
overview.
09
Parameters
Operating system
01 Frame built with high-strength steel throughout
02 4th-generation shanks with exclusive Vomer design: curvature that reduces power requirement; point angle that improves penetration; aggressive upper curvature for mixing and incorporation
03 Non-linear Non-Stop system (Vomer proprietary system): maintains working depth without maintenance

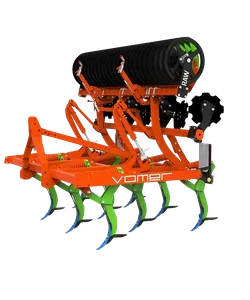

04 Vertical 3-part folding system with roller in 2 sections for more uniform compaction
05 Working depth adjustment via CLIPs/gauges: fast, reliable and precise; provides better weight distribution across the frame
06 Levelling harrows with continuous adjustment via spindle
07 Modular design: allows combining different working and compaction options on the same frame, interchangeable throughout the season
08 3-row frames: shank distribution that cancels lateral forces, prevents residue build-up and increases mixing power (soil stays longer inside the implement)
09 No grease points (Zero Maintenance)
// COMPETITIVE ADVANTAGES
Why choose this machine.
01
Reduction in maintenance costs up to 18%
02
The 4th-generation shank has lower power requirement than all others in its class (per catalogue)
03
More effective use of tractor power compared to other chisels: a lower-power tractor can work under equal conditions, or with equal power fuel consumption is reduced
04
The spacing and distribution of shanks eliminates blockages with large quantities of crop residues, especially maize
05
The 3-row distribution cancels lateral forces: the implement does not drift
06
Equipment approved for travel on public roads
ORIGINAL SPARE PARTS
Implements and accessories
compatible.
4 groups
15 implements
100% genuine
- 01
ShanksExclusive Vomer 4th-generation shank. Aggressive curvature for maximum mixing and incorporation to 40 cm. Maintenance-free non-linear Non-Stop. 10-year warranty against breakage.
01
Shanks
// TECHNICAL LEGEND · SYSTEMS & MODULES
SYSTEM
Non-Stop
ID·001 · ACTIVE
4th-gen. Non-Stop system
Vomer shanks yield to stones or roots up to 200 kN and automatically return to working depth. Without stopping the tractor.
SYSTEM
Zero
ID·002 · ACTIVE
Zero grease points
Lifetime-sealed joints. Zero grease points across the entire machine.
SYSTEM
Vomer 4G shank
ID·003 · ACTIVE
4th-generation Vomer shank
Aggressive curvature and exclusive geometry. Lower resistance and maximum penetration. 10-year warranty against breakage.
10
Years of Warranty
REF: #VOMER-2024
SERIE: AGR-10Y-BRZ
SERIE: AGR-10Y-BRZ
Arador & Vomer
Manufacturer
Arador & Vomer · Official certificate
Warranty
Certificate
Art. I Warranty against shank breakage: 10 years (applicable exclusively to Vomer shanks bearing the «10-year Shank Breakage Warranty» sticker; does not cover other components, transport or service other than shank replacement; does not cover wear or breakage due to misuse; extension based on manufacturing year per manufacturer records)
Art. II Maintenance-free Non-Stop system
Art. III No grease points
Arador & Vomer
Manufacturer
Arador & Vomer · Valid from issue date arador.pro
0€
AFTER-SALES SERVICE
All included.
Zero cost.
5 free services
1998 in the field
∞ post-warranty support
01
Delivery
All Europe
FREE
01
02
Commissioning
At your farm
FREE
02
03
Training
Theory + practice
FREE
03
04
Warranty
Support 24/7
FREE
04
05
Post-warranty
Forever
FREE
05
Technical response within 24h
No small print or exclusions
Financing available
