Trailed chisel plow, 3 rows
Trailed chisel plow, 3 rows

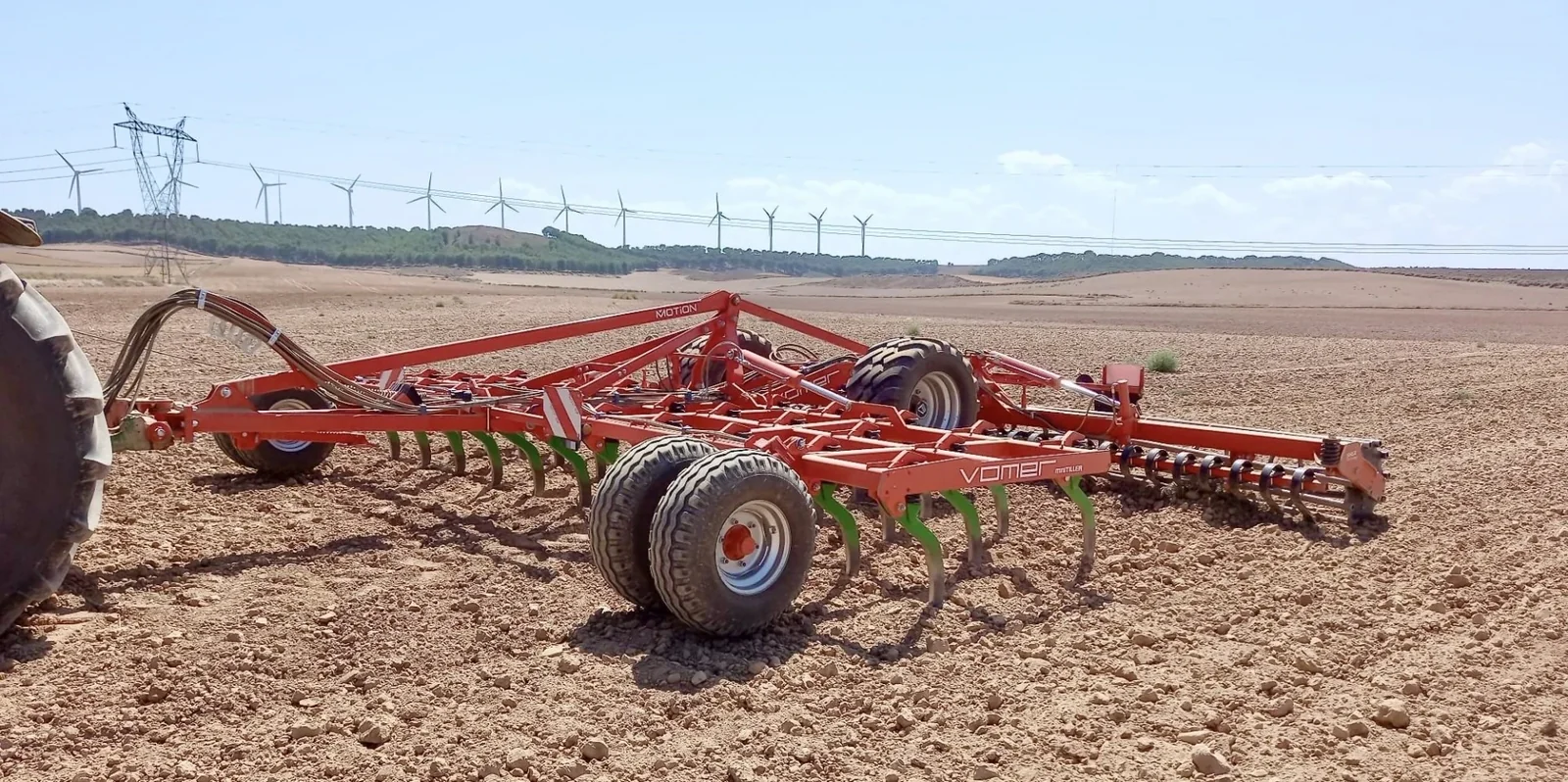

MiniTILLER Motion — Trailed chisel plow, 3 rows
Trailed three-row version with central wheels: more output and lower fuel use per acre than the mounted equivalent, with depth on a single control.
Manufacturer data — ES/26
up to 30 cm
Working depth
4,0–7,2 m
Working width
160–450 hp
Tractor power
up to 30 cm
Working depth
4,0–7,2 m
Working width
160–450 hp
Tractor power
arador.pro
REF: AGR-2026/MIN-001
FECHA: 07/07/2026
ORIGEN: Arador & Vomer · ES
CLASE: MAQUINARIA
NIVEL: TÉCNICO
COPIA: 1 / 1
// About the equipment
MiniTILLERMotion
DESC.
The MiniTILLER Motion is the trailed version of the MiniTILLER with the Motion platform and 3 rows of shanks. It works up to 30 cm deep with Vomer shanks. 25% more efficient than the equivalent mounted version.
TRANS.
Shares shanks, Non-Stop system and 10-year warranty with the mounted MiniTILLER. The SHOX system and central hydraulic control allow constant depth in all soil types.
DOC-AGR · TECHNOLOGY ARADOR & VOMER · 2026 16 PARAM.
// Technical specifications
DATA SHEET # Parameter Value
01
| Machine type
Trailed cultivator — Motion platform
02
| Hitch
Articulated Cat. 3 · Cat. 3–4N
03
| Working width
4.0–7.2 m
04
| Working depth
up to 30 cm
05
| Shank rows
3 rows
06
| Number of shanks
15–33 by model
07
| Transport width
3.00 m
08
| Weight
3,750–4,800 kg
09
| Ground clearance
80 cm
10
| Non-Stop system
Non-Stop + Motion
11
| Required power
160–450 HP
12
| Tyres
445/50 R19.5 (FS.40M/C–60M/C) / 550/45 R22.5 (FS.70M/C; optional on 50/60)
13
| SHOX system
Vertical and lateral roller adaptation
14
| Depth control
Central hydraulic — single control point
15
| Maintenance
Zero — no grease points
16
| Shank warranty
10 years against breakage
Approved data · subject to configuration
16 REG.
OK
// Dimensions
Available models
[ CERTIFIED DATA ]
01 FS.40M
models - Width
- 4,0 m
- Shanks
- 15
- Weight
- 3 750 kg
- Power
- 160–240 hp
02 FS.50M
models - Width
- 5,0 m
- Shanks
- 21
- Weight
- 4 100 kg
- Power
- 220–300 hp
03 FS.60M
models - Width
- 6,0 m
- Shanks
- 27
- Weight
- 4 450 kg
- Power
- 280–370 hp
04 FS.70M
models - Width
- 7,2 m
- Shanks
- 33
- Weight
- 4 800 kg
- Power
- 350–450 hp
4 models · MiniTILLER Motion (3 rows)
// Application Fields · Tactical Map
Application
application.
Active zones: 08 / 08
Status: operational
Ref: AGR-MAP-V1
R1
R2
Col A
Col B
Col C
Col D
A1
01
Wheat
B1
02
Barley
C1
03
Oilseed rape
D1
04
Maize
A2
05
Cereal stubble
B2
06
Primary tillage
C2
07
Large farms
D2
08
GPS precision farming
Col A
Col B
A1
01
Wheat
B1
02
Barley
A2
03
Oilseed rape
B2
04
Maize
A3
05
Cereal stubble
B3
06
Primary tillage
A4
07
Large farms
B4
08
GPS precision farming
Photo record
documentation.
Photo record
01 05
Product
MiniTILLER Motion
Format
Photo · Field
Ref.
VOM·2026·FIG.01
Total records
05 registros
// Photo documentation VOM·2026
Active record

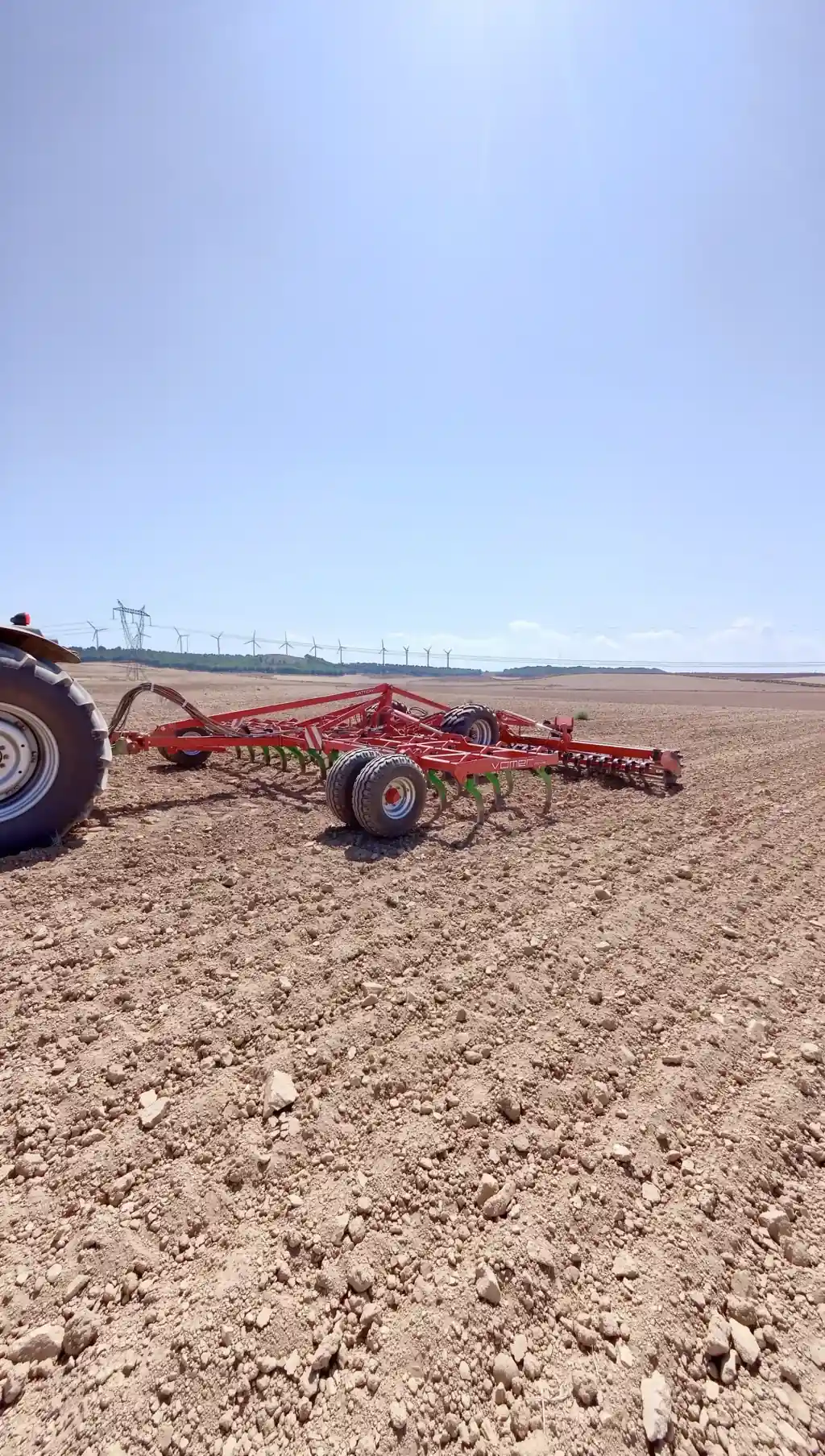

FIG.01 — MiniTILLER Motion
▶ VID.01
VID.01
FIG.01
FIG.02
FIG.03
FIG.04
// Engineering & Design
Construction
overview.
04
Parameters
Operating system
01 Cultivator in 3 rows with large inter-row clearance
02 Articulated hitch on the tractor lower links
03 High-strength maintenance-free shanks
04 Built with high-strength steel
// COMPETITIVE ADVANTAGES
Why choose this machine.
01
Central wheel position: considerably improves weight distribution, provides greater manoeuvrability and ensures better field results
02
Single depth control point located in the centre: uniform adjustment between the right and left sides of the machine
03
Machines very insensitive to lateral forces: the cultivator works perfectly straight behind the tractor (advantage for GPS)
04
Possibility of working as a compaction roller only
05
SHOX system (exclusive to Vomer): roller adaptability to the soil both vertically and laterally; high stability at high speeds; more uniform compaction
06
The use of trailed implements maximises work output, more effectively utilises tractor power and reduces fuel consumption per hectare (as stated in catalogue)
07
The stability of the implement and precise depth controls allow higher operating speeds (as stated in catalogue)
08
Time savings can be achieved even on small fields (as stated in catalogue)
09
Considerably reduce the power required for the same working width (as stated in catalogue)
ORIGINAL SPARE PARTS
Implements and accessories
compatible.
3 groups
13 implements
100% genuine
- 01
ShanksVersatile high-strength shank for mid-depth tillage up to 30 cm. Compatible with universal shares and Goosefoot shares. Maintenance-free Non-Stop. The most versatile in the Tiller range.
01
Shanks
// TECHNICAL LEGEND · SYSTEMS & MODULES
SYSTEM
Non-Stop
ID·001 · ACTIVE
Non-Stop System 4th gen.
Vomer shanks yield to stones or roots up to 200 kN and automatically return to working depth. Without stopping the tractor.
SYSTEM
Zero
ID·002 · ACTIVE
Zero grease points
Lifetime-sealed joints. Zero grease points on the entire machine.
SYSTEM
Vomer 4G shank
ID·003 · ACTIVE
4th-generation Vomer shank
Aggressive curvature and exclusive geometry. Less resistance and maximum penetration. 10-year warranty against breakage.
PLATFORM
Motion
ID·004 · ACTIVE
Motion platform
Transport wheels in a central position under the frame. Better weight distribution, +25% efficiency compared to the mounted version.
SYSTEM
SHOX
ID·005 · ACTIVE
SHOX system
Roller damping with vertical and lateral adaptation to the terrain. Allows adding ballast for greater compaction.
10
Years of Warranty
REF: #VOMER-2024
SERIE: AGR-10Y-BRZ
SERIE: AGR-10Y-BRZ
Arador & Vomer
Manufacturer
Arador & Vomer · Official certificate
Warranty
Certificate
Art. I Maintenance-free shanks
Art. II 10-year warranty against shank breakage (indicated in the general TILLER range block)
Arador & Vomer
Manufacturer
Arador & Vomer · Valid from issue date arador.pro
0€
AFTER-SALES SERVICE
All included.
Zero cost.
5 free services
1998 in the field
∞ post-warranty support
01
Delivery
All Europe
FREE
01
02
Commissioning
At your farm
FREE
02
03
Training
Theory + practice
FREE
03
04
Warranty
Support 24/7
FREE
04
05
Post-warranty
Forever
FREE
05
Technical response within 24h
No small print or exclusions
Financing available
